Geosun GS-120G Handheld LiDAR HESAI XT32 SLAM Algorithms Indoor Outdoor Mapping

Name: Geosun GS120G Handheld LiDAR HESAI XT32 SLAM Algorithms Indoor Outdoor Mapping
Brand: Geosun Navigation
Price: 1 USD

Brand Name : Geosun Navigation

Model Number : GS-120G

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, Western Union, Credit Card

Delivery Time : 5-7 works days

Packaging Details : Suit Case 450*365*200 mm

Material : Aluminum Alloy Body

Weight : 2.15kg

Storage : 128GB

Working Temperature : -20°~+55°

Processing Software : PointCloudCreater

Contact Now

Geosun GFireEye Series GS-120G SLAM HESAI XT32 Slam Algorithms Indoor/Outdoor Mapping 3D Data Collection

Geosun gFireEye Series GS-120G SLAM LiDAR

GS-120G is a kind of handheld LiDAR scanning system independently developed by Geosun company.It adopts a simple design with a small body, so as to be light to carry, easy to operate and flexible to install.With a variety of sensors, it can quickly capture a wide range of scene data, support multi-platform and multi-mode operation, and combine GNSS, INS, LiDAR and SLAM algorithms to achieve seamless survey of indoor and outdoor scenes. SLAM Serial Solution.pdf

Specification of SLAM LiDAR Scanning System GS-120G

System Parameter
Point Cloud Accuracy	5cm@100m without control point
Weight	2.15kg(with battery)
Battery Parameter	11600mAh
Storage	128GB, Support microSD 256GB.
Voltage Range	12V-18V
Working Temperature	-20℃-55℃
Carrying Platform	Hand-held, Multi-rotor and Vehicle
System Consumption	25W

POS Unit
Model	gSpin 210
Update Frequency	200Hz
GNSS Signal Type	GPS L1/L2/L5, GLONASS L1/L2 BDS B1C/B1/B2/B2a/B2b/B3 GALELEO E1/E5b/E5a
Position Accuracy	Horizonal 0.02m Elevation 0.03m
Pitch Accuracy	0.015°
Roll Accuracy	0.015°
Heading Accuracy	0.040°

Laser Unit
Detection Range	80m@10%,Max Range 120m
Range Accuracy	1cm
Channel	32
Horizontal FOV	360°
Vertical FOV	270°
Points Rates	Dual echo 1,280,000 Points/Sec,

Camera Parameter
Resolution	2*20 MP
FOV	Horizontal 270°
Shooting Mode	Isochronous

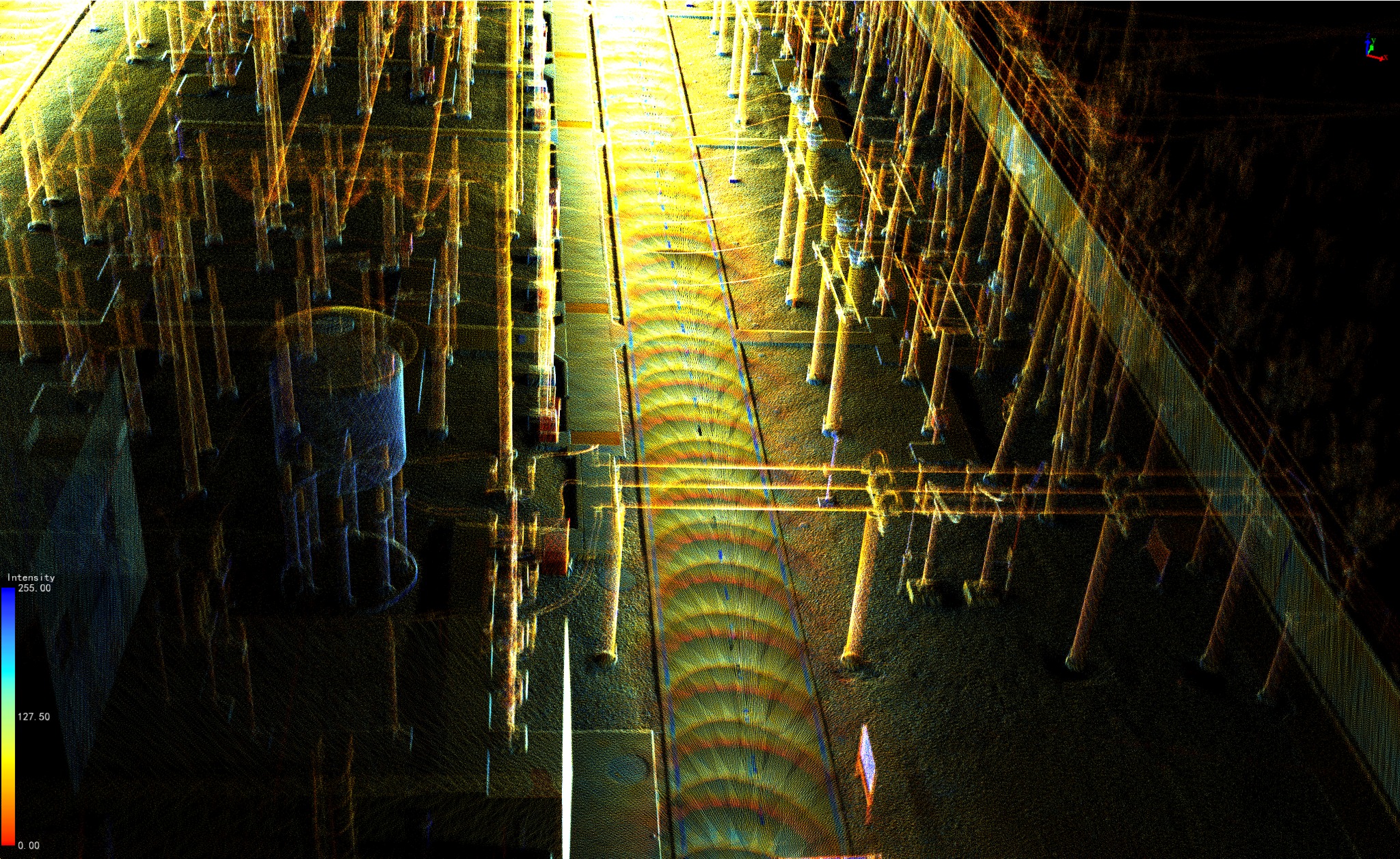

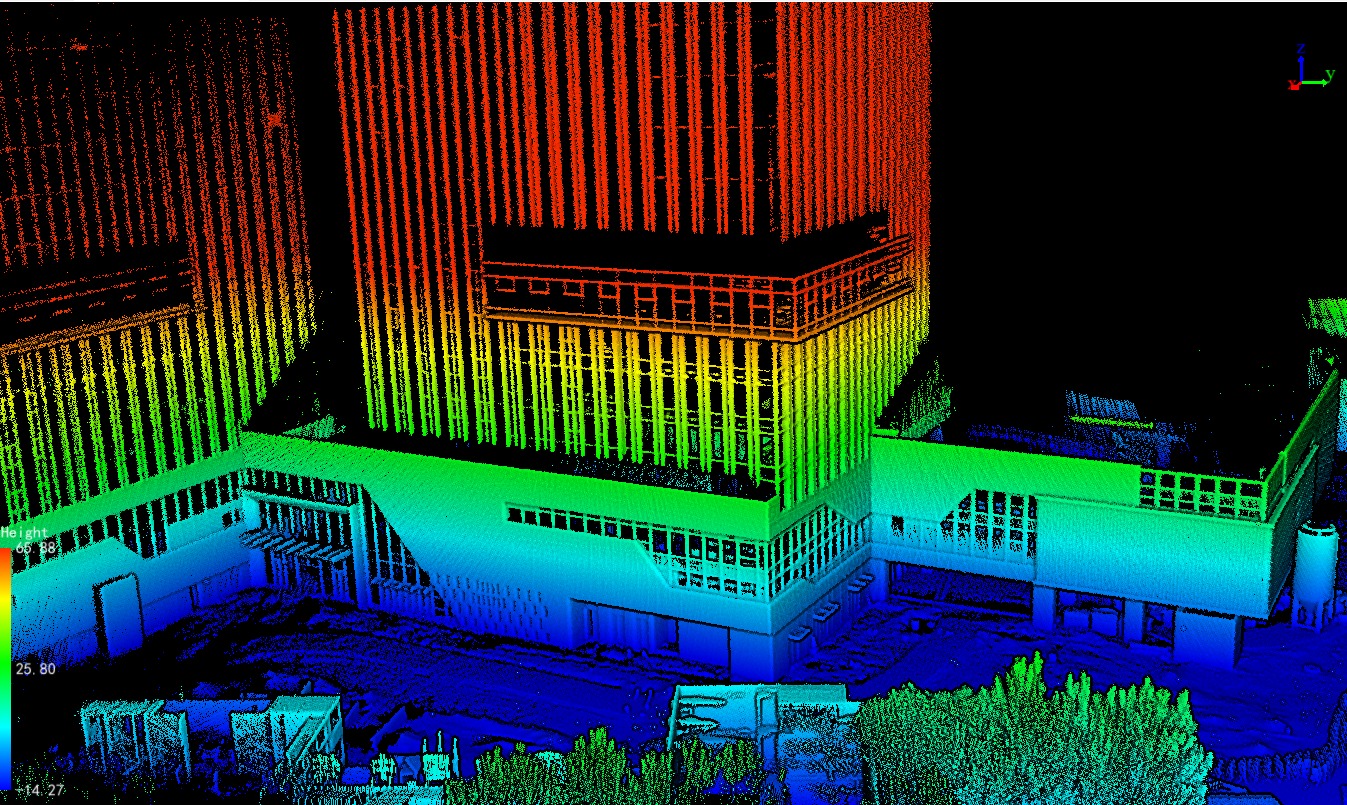

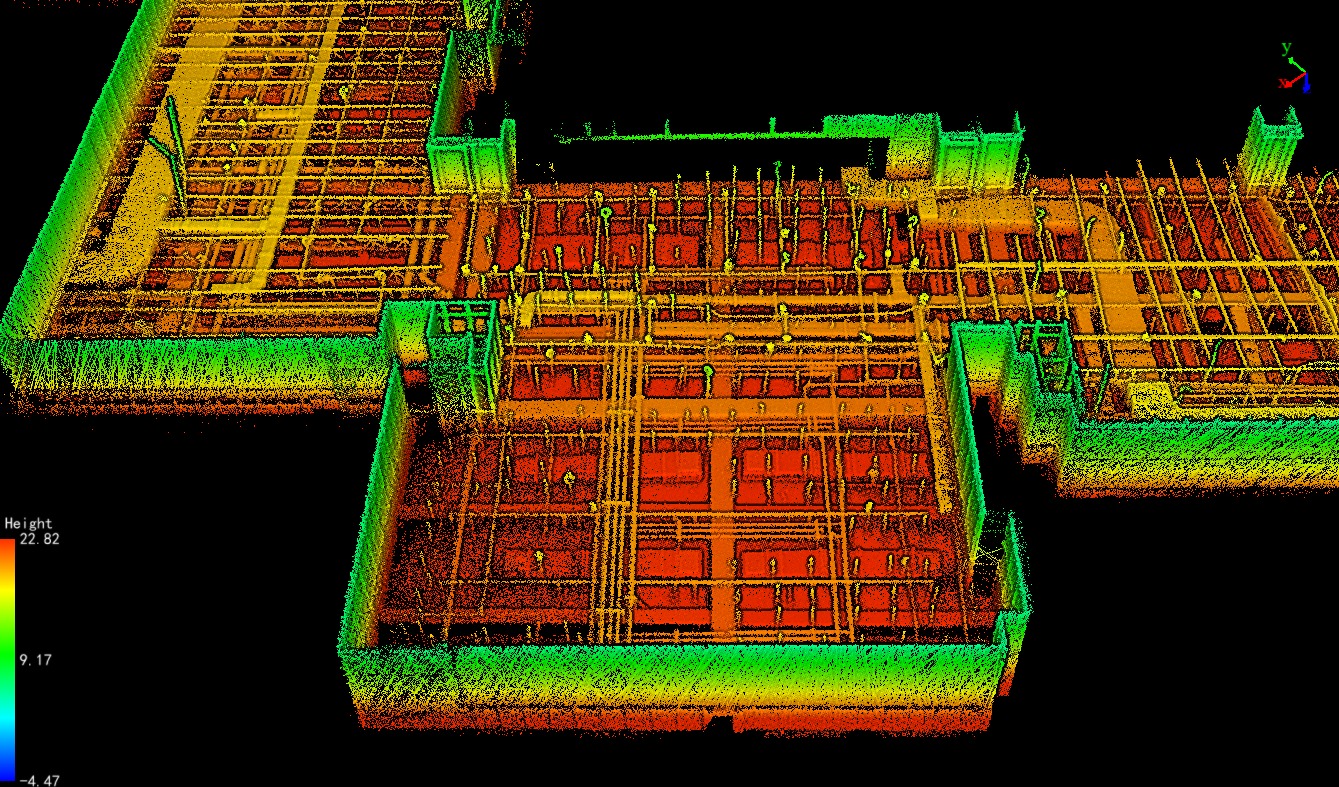

Indoor/Outdoor Application of SLAM Solution GS-120G

Geosun GS-120G Handheld LiDAR HESAI XT32 SLAM Algorithms Indoor Outdoor Mapping

Package SLAM LiDAR Scanning System GS-120G

SLAM LiDAR Scanning System GS-120G is packed by suit suitcase with EVA material liner inside, then covered by a hard carton box. It is suitable for air shipment and sea shipment.
Geosun GS-120G Handheld LiDAR HESAI XT32 SLAM Algorithms Indoor Outdoor Mapping

Geosun GS-120G Handheld LiDAR HESAI XT32 SLAM Algorithms Indoor Outdoor Mapping
