GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

Name: GAirHawk Series GS1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping
Brand: Geosun
Price: 1 USD

Brand Name : Geosun

Model Number : GS-1500N LiDAR Scanning System

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 30 SETS/Month

Delivery Time : 10 works days

Packaging Details : Suit Case 450*365*200 mm

Name : LiDAR Scanning System

Operation Efficency : 2.8 k㎡ per single flight

Application : Topography, Forestry, Powerline, Smart City

Channel : Mapping & Survey

Material : Aluminum alloy Body

Accuracy : 10cm@400m

Dimension : 238*102*130mm

Weight : 2.5kg

Storage : 128GB TF Card, Support maximum 256 GB

Working Temperature : -20°~+55°

Carry Platform : Multi Rotor/VTOL

Trajectory Software : Shuttle

Point Cloud Software : gAirHawk

Measuring Range : 1000m @ 80% Reflectivity

Returns : Up to 8(Customized)

Point Rate : Up to 1,500,000 pts/sec

Laser Safety : Class 1

IP Rating : IP64

Contact Now

Geosun GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping High Accuracy

Geosun gAirHawk Series GS-1500N LiDAR Scanning System

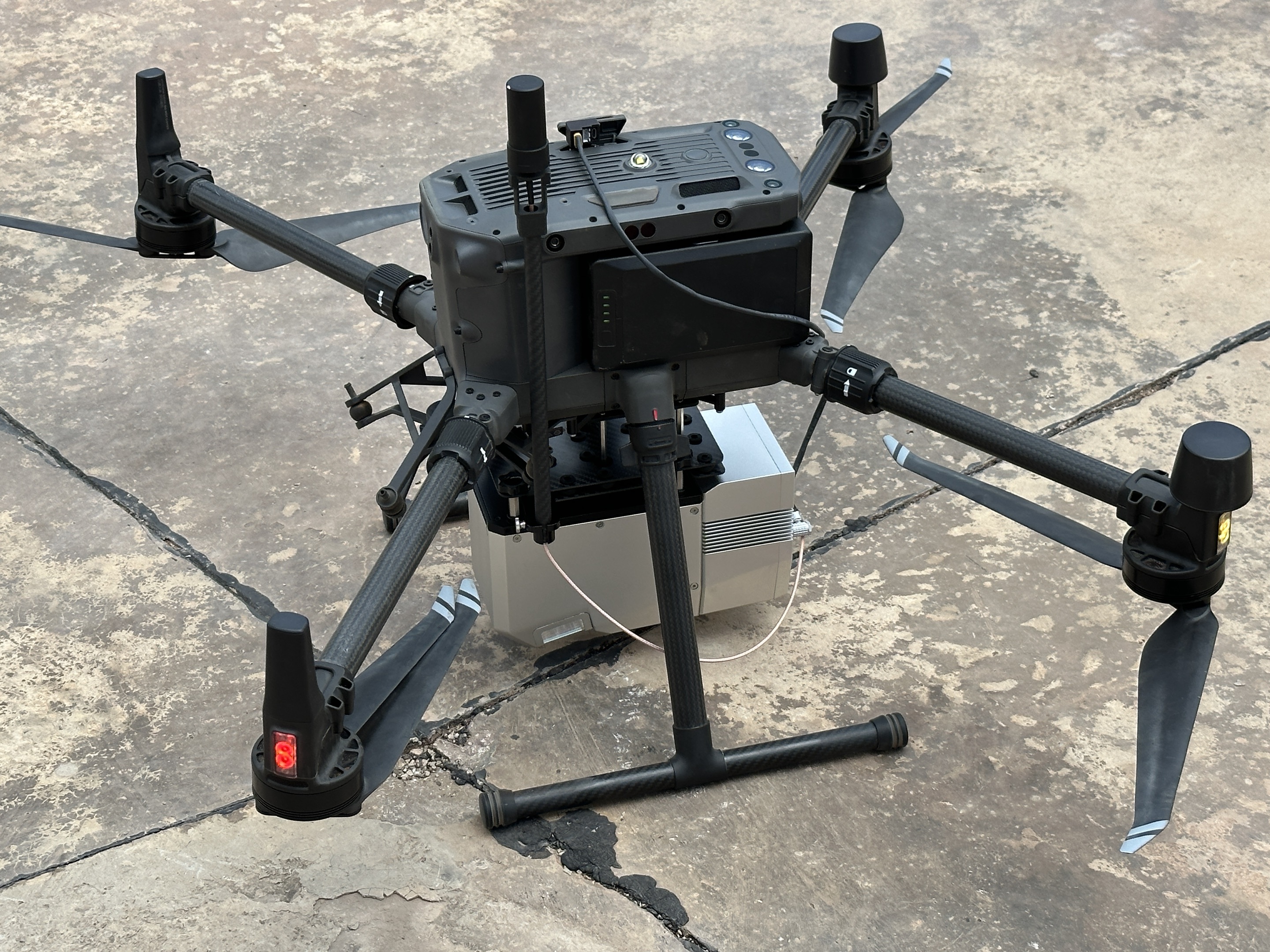

gAirHawk GS-1500N is a kind of long range, compact LiDAR point cloud data acquisition system, integrated FT-800 long range laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning. GS-1500N LiDAR Scanning System.pdf

Specification of LiDAR Scanning System gAirHawk GS-1500N

LiDAR scanning system gAirHawk GS-1500N
	Item Name	System Parameters
GS-1500N Parameters	Accuracy	10cm@400m
	Weight	2.5kg
	Working temperature	-20℃~+55℃
	Power range	12 V- 24 V
	Consumption	65 W
	Carrying Platform	6 Aixs Multi Rotor Drone,VTOL
	Storage	128GB TF Card, Support Maximum 256 GB
	IP Rating	IP64
	Dimension	238102130mm
Laser Unit	Measuring Range	1000m@80%Reflectivity
	Laser class	1535 nm Class1 (IEC 60825-1:2014)
	Laser line number	FT-800 Single-Beam
	Range Accuracy	5mm@100m
	Laser Wavelength	1535m
	Returns	8 echos(Customized)
	Scanning frequency	100HZ-2000HZ
	Point Rate	Up to 1,500,000 pts/sec
	Laser Type	Single Line Mechanical Scanning
	FOV	100°, adjustable
POS Unit	Update frequency	200HZ
	Heading accuracy	0.010°
	Pitch accuracy	0.003°
	Rolling accuracy	0.003°
	Position accuracy	Horizontal: 0.01m, Vertical: 0.02m
	GNSS signal type	GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
	IMU	gSpin 410
Pre-processing software	POS software	Output information: position, speed, attitude
Pre-processing software	Point cloud software	Output point cloud data format: LAS format, custom TXT format
Camera (built-in)	FOV	48*33 Degree
	Effective Pixel	45 MP (Full Frame Camera)
	focal Length(mm)	16

Applications of LiDAR Scanning System gAirHawk GS-1500N

GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

Free Trial Software LiDAR Scanning System gAirHawk GS-1500N

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation
GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

Package of LiDAR Scanning System gAirHawk GS-1500N

LiDAR Scanning System gAirHawk GS-1500N is packed by suit case with EVA material liner inside, then covered by hard carton box.

The pacakge of uav LiDAR scanning system is suitable for air shipment and sea shipment.
GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

GAirHawk Series GS-1500N LiDAR Scanning System 8 Echos Long Detection Aerial VTOL Mapping

IP64
