gAirHawk GS-260F UAV LIDAR SCANNING SYSTEM
Drone LiDAR Scanning System Application for Mapping and Survey
GS 260F Mobile LiDAR System - YouTube
gAirHawk GS-260F is a kind of Mid-range, compact LiDAR point cloud data acquisition system, integrated HESAI Pandar 40P laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.
Pandar40P 40-Channel Mechanical LiDAR
Specification
| gAirHawk GS-260F |
| | Item Name | System Parameters |
|
GS-260F
Parameters | Weight | 2.1 kg |
| Measuring accuracy | Less than 0.1m/0.05m(@150m) |
| Working temperature | -20℃~+60℃ |
| Power range | 12 V- 24 V |
| Consumption | 20 W |
| Carrying Platform | DJI M300, M600 PRO |
| Storage | 64 GB storage, maximum support 128GB TF card |
| Lidar Unit | Measuring Range | 0.3m-200m@20% Reflectivity |
| Laser class | 905nm Class1 (IEC 60825-1:2014) |
| Laser line number | 40-Beam |

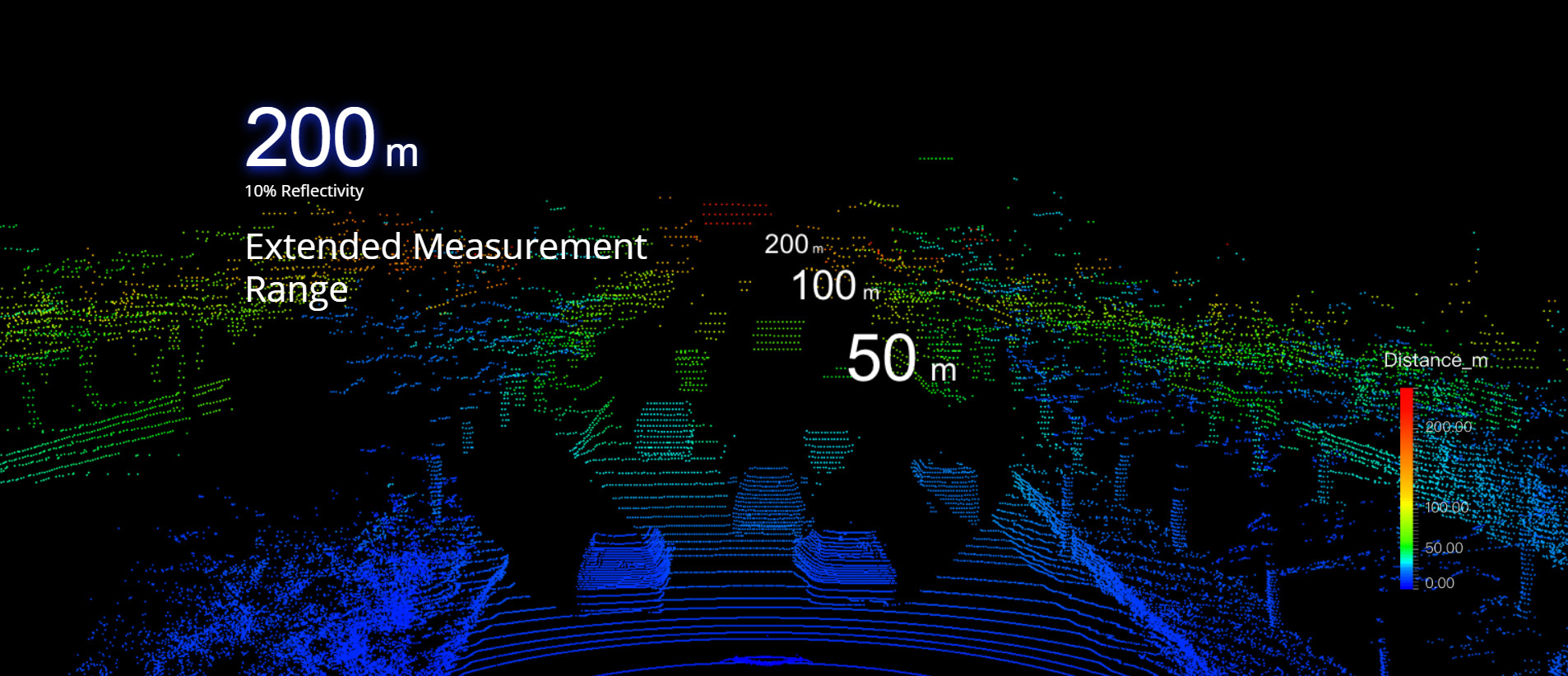

| Max. range | 200 m |
| Mix. range | 0.3 m |
| Range accuracy | ±5cm (@0.3m~5m), ±2cm (@0.5m~200m) |
| Scanning frequency | 10HZ, 20HZ |
| data | Double echo 720,000 Points/Sec |
| FOV | 360°, adjustable |
| Laser sensor | HESAI Pandar 40P |
| POS Unit | Update frequency | 200HZ |
| Heading accuracy | 0.017° |
| Pitch accuracy | 0.005° |
| Rolling accuracy | 0.005° |
| Position accuracy | ≤0.05m |
| GNSS signal type | GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b |
| Pre-processing software | POS software | Output information: position, speed, attitude |
| Point cloud software | Output point cloud data format: LAS format, custom TXT format |
| Camera | Standard | 26 MP resolution with 83 degree FOV |
Application for Road Mapping
Package
It is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
